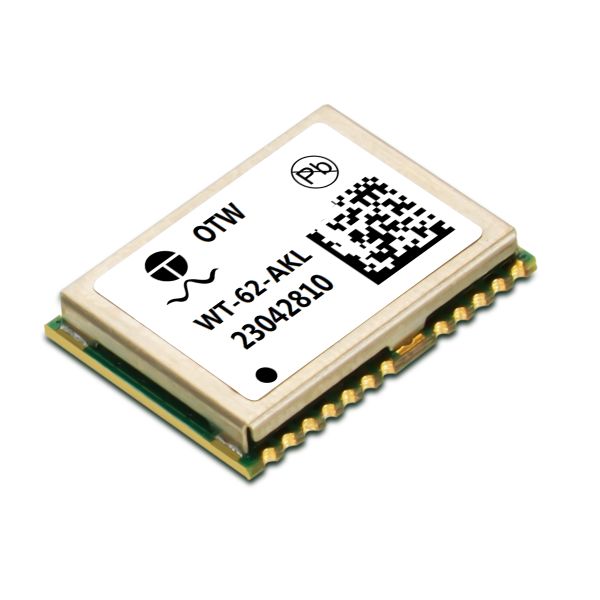

Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle

Brand Name : OTW

Model Number : WT-62-AKL

Place of Origin : China

MOQ : 10pcs

Price : US $2.4 - 11.80/

Payment Terms : T/T, Western Union

Supply Ability : Above US$100 Million

Delivery Time : 7-10working days after receiving the payment

Type : GNSS Module

Country of Origin : CHINA

Brand : OTW

Operating mode : GPS+GLONASS+GALILEO+ BDS

Output Mode : UART+TTL+R232

NMEA messages : RMC,VTG,GGA,GSA,GSV,GLL

Voltage : 1.8V to 3.6V

Power consumption : 23 mA , @3.3V

Contact Now

Smart 4G GPS Tracker Locator Car and Motorcycle Anti-Theft GPS Tracking Devices with Real Time GNSS Module

Product descriptions from the supplier

Overview

Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle

Application:

● Vehicle and ship positioning and navigation
● Time Service
● Wearable devices
● Mobile phones, tablets and other portable devices

Features:

● Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning.
● With antenna detection circuit and short circuit protection
● Low power consumption, high sensitivity
● Built-in low noise amplifier LNA and filter SAW, even passive antennas can be quickly positioned

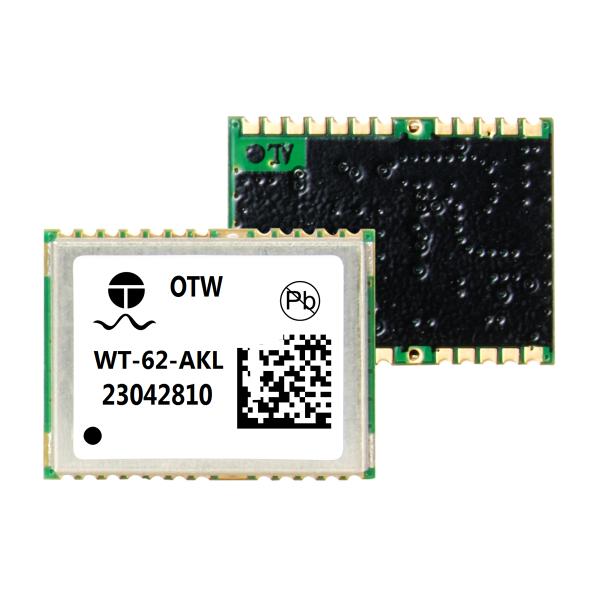

Bottom view

Module pin allocation

Module performance
Model	WT-62-AKL
Receiver type	BDS:B1I+B1C GPS/QZSS/SBAS:L1C/A GALILEO:E1 GLONASS:L1
Agreement	NMEA-0183 compliant protocol or custom protocol
Available baud rate	4800bps~921600bps(default 9600bps)
Channel	56
Sensitivity	Tracking: -162dbm Capture: -160dbm Cold start -148dbm
Cold start	Average 29seconds
Hot start	Average 1 seconds
Accuracy	Horizontal Position : average, SBAS < 2.5m
18Max Height	18000 M
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -10 Hz
Positioning mode	A-GNSS
Port
Port	2 URAT 1 I2C 2 SPI
Physical property
Type	24 pin stamp holes
Size	16.0mm12.2mm2.4mm(+/- 0.5mm)
Power supply
Voltage	1.8V~3.6V
Power Consume	Maximum performance: Capture :23mA, tracking (power saving mode /1HZ) : 5mA
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
